Capuchones Flexibles
Capuchón flexible cuadrado
Referencia 193
Capuchón flexible cuadrado
Referencia193
MaterialPVC
ColorVarios
Sectores de aplicaciónAutomociónAeronáuticaAutomatizaciónHidráulica y NeumáticaMaquinaria AgrícolaMecanizados y Transformados
Solicitar presupuesto →
Descripción
Fabricados en Vinilo, PVC, disponibles en diferentes colores y medidas. Tienen una gran flexibilidad.

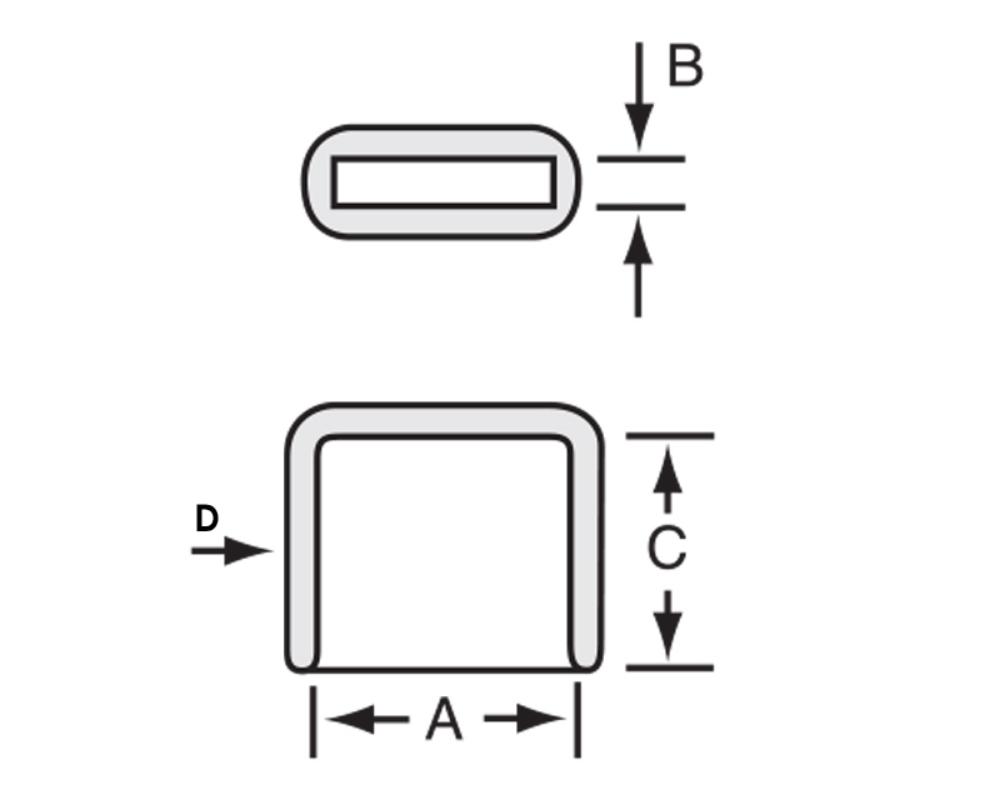

Plano técnico
Medidas disponibles
| Referencia | A (mm) | B (mm) | C (mm) | D (mm) |
|---|---|---|---|---|
| 193-12-1,2-6,5 | 1.2 | 12 | 6.5 | 0.96 |
| 193-12-1,2-13 | 1.2 | 12 | 13 | 1 |
| 193-12-1,2-16 | 1.2 | 12 | 16 | 1.5 |
| 193-12-1,2-18 | 1.2 | 12 | 18 | 1.5 |
| 193-12-1,2-20 | 1.2 | 12 | 20 | 1.39 |
| 193-12-1,2-20 | 1.2 | 12 | 20 | 1.5 |
| 193-12-1,2-25 | 1.2 | 12 | 25 | 1 |
| 193-12-1,2-26 | 1.2 | 12 | 26 | 1.39 |
| 193-12-1,2-26 | 1.2 | 12 | 26 | 1.52 |
| 193-12,4-0-25 | 12.4 | 25 | 1.5 | |
| 193-12-3-23 | 12 | 23 | 1.65 | |
| 193-12-3-25 | 12 | 25 | 2 | |
| 193-12-3-35 | 12 | 34.96 | 1.65 | |
| 193-12-3-35 | 12 | 35 | 1.2 | |
| 193-12-3-40 | 12 | 40 | 0.96 | |
| 193-12-3-40 | 12 | 40 | 1 | |
| 193-12-3-60 | 12 | 60 | 1 | |
| 193-12-3-62 | 12 | 62 | 1 | |
| 193-12-3-80 | 12 | 80 | 1.52 | |
| 193-12-3-95 | 12 | 95 | 1.65 | |
| 193-12-3-100 | 12 | 100 | 0.96 | |
| 193-12-3-107 | 12 | 107 | 1.8 | |
| 193-12-3-120 | 12 | 120 | 1.8 | |
| 193-12-3-135 | 12 | 135 | 1.8 | |
| 193-12,7-9,5-9 | 12.7 | 9 | 1.52 | |
| 193-12,7-9,5-12,7 | 12.7 | 12.7 | 1.5 | |
| 193-15,6-0-23 | 15.6 | 23 | 1.52 | |
| 193-15,9-3,2-17 | 15.88 | 17 | 1.39 | |
| 193-15,9-3,2-17 | 15.88 | 17 | 1.5 | |
| 193-15,9-3,2-18 | 15.88 | 18 | 1.39 | |
| 193-15,9-3,2-19,1 | 15.88 | 19.05 | 1.5 | |
| 193-15,9-3,2-20 | 15.88 | 20 | 1.5 | |
| 193-15,9-3,2-24 | 15.88 | 24 | 1.52 | |
| 193-15,9-3,2-24 | 15.88 | 24 | 1.65 | |
| 193-15,9-3,2-25,4 | 15.88 | 25.4 | 1.5 | |
| 193-15,9-3,2-31,8 | 15.88 | 31.75 | 1.8 | |
| 193-15,9-3,2-35 | 15.88 | 35 | 1.39 | |
| 193-15,9-3,2-40 | 15.88 | 40 | 1.5 | |
| 193-15,9-3,2-45 | 15.88 | 45 | 1.5 | |
| 193-15,9-3,2-50 | 15.88 | 50 | 1.52 | |
| 193-15,9-3,2-60 | 15.88 | 60 | 1.5 | |
| 193-17,5-3-35 | 17.5 | 35 | 1.9 | |
| 193-17,5-3-55 | 17.5 | 55 | 1.5 | |
| 193-17,5-3-60 | 17.5 | 60 | 1.9 | |
| 193-17,5-3-65 | 17.5 | 65 | 2 | |
| 193-17,5-3-72 | 17.5 | 72 | 1.65 | |
| 193-17,5-3-78 | 17.5 | 78 | 1.8 | |
| 193-17,5-3-80 | 17.5 | 80 | 1.9 | |
| 193-19,1-1,6-12 | 19 | 12 | 1.5 | |
| 193-19,1-1,6-14 | 19 | 14 | 0.96 | |
| 193-19,1-1,6-24 | 19 | 24 | 1.65 | |
| 193-19,3-2,7-12 | 19.3 | 12 | 1.5 | |
| 193-19,3-2,7-15 | 19.3 | 15 | 0.96 | |
| 193-19,3-2,7-40 | 19.3 | 40 | 1.52 | |
| 193-19,3-2,7-65 | 19.3 | 65 | 1.52 | |
| 193-19,3-2,7-70 | 19.3 | 70 | 1.65 | |
| 193-19,3-2,7-80 | 19.3 | 80 | 1.8 | |
| 193-19,3-2,7-90 | 19.3 | 90 | 1.8 | |
| 193-19,3-2,7-100 | 19.3 | 100 | 2 | |
| 193-19,3-2,7-148,5 | 19.3 | 148.5 | 1.5 | |
| 193-19,3-2,7-150 | 19.3 | 150 | 1.5 | |
| 193-19,3-2,7-200 | 19.3 | 200 | 1.2 | |
| 193-19,3-2,7-200 | 19.3 | 200 | 1.5 | |
| 193-19,9-0-50 | 19.9 | 50 | 1.8 | |
| 193-20-3-25 | 20 | 25 | 1.5 | |
| 193-20-3-80 | 20 | 80 | 1.2 | |
| 193-20-3-90 | 20 | 90 | 2.5 | |
| 193-20-3-100 | 20 | 100 | 1.5 | |
| 193-20-3-103 | 20 | 103 | 1.52 | |
| 193-20-3-120 | 20 | 120 | 1.25 | |
| 193-20-3-150 | 20 | 150 | 1.5 | |
| 193-20-3-200 | 20 | 200 | 1.5 | |
| 193-20-6-12,7 | 20 | 12.7 | 1.3 | |
| 193-20-6-25,4 | 20 | 25.4 | 1.3 | |
| 193-20-6-30 | 20 | 30 | 1.3 | |
| 193-20-6-30 | 20 | 30 | 1.52 | |
| 193-21-3-100 | 21 | 100 | 1.3 | |
| 193-21-3-115 | 21 | 115 | 1.25 | |
| 193-21-3-115 | 21 | 115 | 1.8 | |
| 193-21,5-3-65 | 21.5 | 65 | 2 | |
| 193-21,5-3-65 | 21.5 | 65 | 2.25 | |
| 193-21,5-3-85 | 21.5 | 85 | 2 | |
| 193-22,2-15,4-10,8 | 22.23 | 10.8 | 1.5 | |
| 193-23-0-0 | 23 | 0 | 1.52 | |
| 193-23-0-0 | 23 | 0 | 1.52 | |
| 193-23-10,2-0 | 23 | 0 | 2 | |
| 193-23-0-0 | 23 | 0 | 3 | |
| 193-24,5-3-30 | 3 | 24.5 | 30 | 1.52 |
| 193-24,5-3-34 | 3 | 24.5 | 34 | 1.52 |
| 193-24,5-3-75 | 3 | 24.5 | 75 | 1.25 |
| 193-24,5-3-90 | 3 | 24.5 | 90 | 1.8 |
| 193-24,5-3-110 | 3 | 24.5 | 110 | 2 |
| 193-24,5-3-125 | 3 | 24.5 | 125 | 1.25 |
| 193-24,5-3-150 | 3 | 24.5 | 150 | 2.5 |
| 193-24,5-3-200 | 3 | 24.5 | 200 | 1.8 |
| 193-25-4-37 | 4 | 25 | 37 | 1.52 |
| 193-25-4-38,1 | 4 | 25 | 38.1 | 1.52 |
| 193-25-4-65 | 4 | 25 | 65 | 2 |
| 193-25-4-85 | 4 | 25 | 85 | 1.8 |
| 193-25-4-95 | 4 | 25 | 95 | 1.9 |
| 193-25-4-100 | 4 | 25 | 100 | 1.8 |
| 193-25-4-100 | 4 | 25 | 100 | 2.5 |
| 193-25-4-108 | 4 | 25 | 108 | 1.52 |
| 193-25-4-110 | 4 | 25 | 110 | 1.8 |
| 193-25-4-110 | 4 | 25 | 110 | 3 |
| 193-25-4-130 | 4 | 25 | 130 | 1.8 |
| 193-25,4-3,2-25,4 | 3.18 | 25.4 | 25.4 | 1.5 |
| 193-25,4-3,2-33 | 3.18 | 25.4 | 33 | 1.52 |
| 193-25,4-3,2-35 | 3.18 | 25.4 | 35 | 2 |
| 193-25,4-3,2-50 | 3.18 | 25.4 | 50 | 1.5 |
| 193-25,4-3,2-50 | 3.18 | 25.4 | 50 | 1.52 |
| 193-25,4-3,2-65 | 3.18 | 25.4 | 65 | 2.25 |
| 193-25,4-3,2-77 | 3.18 | 25.4 | 77 | 1.8 |
| 193-25,4-3,2-95 | 3.18 | 25.4 | 95 | 1.8 |
| 193-25,4-3,2-100 | 3.18 | 25.4 | 100 | 1.25 |
| 193-25,4-3,2-125 | 3.18 | 25.4 | 125 | 1.25 |
| 193-25,4-3,2-150 | 3.18 | 25.4 | 150 | 1.25 |
| 193-25,4-3,2-165 | 3.18 | 25.4 | 165 | 1.25 |
| 193-25,4-3,2-200 | 3.18 | 25.4 | 200 | 1.25 |
| 193-26-1,5-12 | 1.5 | 26 | 12 | 1.5 |
| 193-26-1,5-12 | 1.5 | 26 | 12 | 1.52 |
| 193-28,5-5-50 | 5 | 28.5 | 50 | |
| 193-28,5-5-50 | 5 | 28.5 | 50 | 1.5 |
| 193-28,5-5-101,6 | 5 | 28.5 | 101.6 | 2.5 |
| 193-28,5-5-110 | 5 | 28.5 | 110 | 1.8 |
| 193-28,5-5-130 | 5 | 28.5 | 130 | 1.65 |
| 193-28,5-5-145 | 5 | 28.5 | 145 | 2 |
| 193-28,5-9,5-15 | 9.53 | 28.5 | 15 | 1 |
| 193-29,8-6,4-12,7 | 6.35 | 29.8 | 12.7 | 2 |
| 193-29,8-6,4-25 | 6.35 | 29.8 | 25 | 0.96 |
| 193-29,8-6,4-25,4 | 6.35 | 29.8 | 25.4 | 0.96 |
| 193-29,8-6,4-25,4 | 6.35 | 29.8 | 25.4 | 1.8 |
| 193-30-3-20 | 3 | 30 | 20 | 1.5 |
| 193-30-3-75 | 3 | 30 | 75 | 1.5 |
| 193-30-3-88 | 3 | 30 | 88 | 1.65 |
| 193-30-3-100 | 3 | 30 | 100 | 2.25 |
| 193-30-3-125 | 3 | 30 | 125 | 1.8 |
| 193-30-3-143 | 3 | 30 | 143 | 1.8 |
| 193-30-3-210 | 3 | 30 | 210 | 2.5 |
| 193-30,2-4,8-110 | 4.75 | 30.16 | 110 | 1.5 |
| 193-38,1-6,4-8 | 6.35 | 38.1 | 8 | 1.5 |
| 193-38,1-6,4-33 | 6.35 | 38.1 | 33 | 1.5 |
| 193-38,1-6,4-50 | 6.35 | 38.1 | 50 | 1.5 |
| 193-38,1-6,4-60 | 6.35 | 38.1 | 60 | 1.8 |
| 193-38,1-9,5-12,7 | 9.5 | 38.1 | 12.7 | 1.65 |
| 193-40-3-15 | 3 | 40 | 15 | 1.52 |
| 193-40-3-15 | 3 | 40 | 15 | 2 |
| 193-40-3-25 | 3 | 40 | 25 | 1.65 |
| 193-40-3-100 | 3 | 40 | 100 | 1.5 |
| 193-40-3-335 | 3 | 40 | 335 | 1.65 |
| 193-50-3-25 | 3 | 50 | 25 | 1.52 |
| 193-50-3-25 | 3 | 50 | 25 | 1.65 |
| 193-50-3-25 | 3 | 50 | 25 | 1.65 |
| 193-50-3-25 | 3 | 50 | 25 | 2 |
| 193-50-3-25,4 | 3 | 50 | 25.4 | 1.65 |
| 193-50-3-30 | 3 | 50 | 30 | 2 |
| 193-50-3-50 | 3 | 50 | 50 | 2 |
| 193-50-3-100 | 3 | 50 | 100 | 1.5 |
| 193-50-3-101,6 | 3 | 50 | 101.6 | 1.65 |
| 193-50-3-150 | 3 | 50 | 150 | 1.5 |
| 193-50-3-200 | 3 | 50 | 200 | 1.5 |
| 193-55-23-12,7 | 23 | 55 | 12.7 | 1.65 |
| 193-6,5-1,5-10 | 1.5 | 7 | 10 | 0.96 |
| 193-6,5-1,5-32 | 1.5 | 7 | 32 | 1.39 |
| 193-71,5-1,4-25 | 1.4 | 71.5 | 25 | 1.6 |
| 193-73,5-1,4-12 | 1.4 | 73.5 | 12 | 1.5 |
| 193-73,5-1,4-12 | 1.4 | 73.5 | 12 | 1.65 |
| 193-8-1,2-8 | 1.2 | 8 | 8 | 0.71 |
| 193-8-1,2-8 | 1.2 | 8 | 8 | 1.39 |
| 193-8-1,2-10 | 1.2 | 8 | 10 | 0.96 |
| 193-9-1,5-10 | 1.5 | 9 | 10 | 1.3 |
| 193-9-1,5-12,7 | 1.5 | 9 | 12.7 | 1.5 |
| 193-9-1,5-15 | 1.5 | 9 | 15 | 1.5 |
| 193-9-1,5-15 | 1.5 | 9 | 15 | 2 |
| 193-9-1,5-20 | 1.5 | 9 | 20 | 1.3 |
| 193-9-1,5-20 | 1.5 | 9 | 20 | 1.39 |
| 193-9-1,5-20 | 1.5 | 9 | 20 | 1.5 |
| 193-9-1,5-25,4 | 1.5 | 9 | 25.4 | 0.76 |
| 193-9-1,5-32 | 1.5 | 9 | 32 | 1.39 |
| 193-9-1,5-50 | 1.5 | 9 | 50 | 0.96 |
| 193-9-1,5-50 | 1.5 | 9 | 50 | 1.8 |
| 193-9-1,5-90 | 1.5 | 9 | 90 | 2.8 |
Todas las medidas expresadas en milímetros (mm). ¿No encuentra su medida exacta? Consúltenos, fabricamos a medida.
Solicite información o presupuesto
Indíquenos las medidas y cantidades que necesita. Le responderemos en menos de 24 horas laborables, sin compromiso.
