Capuchones Flexibles
Capuchón flexible cuadrado o rectangular
Referencia 199
Capuchón flexible cuadrado o rectangular
Referencia199
MaterialPVC
ColorVarios
Sectores de aplicaciónAutomociónAeronáuticaAutomatizaciónHidráulica y NeumáticaMaquinaria AgrícolaMecanizados y Transformados
Solicitar presupuesto →
Descripción
Fabricados en Vinilo, PVC, disponibles en diferentes colores, poseen una gran flexibilidad.

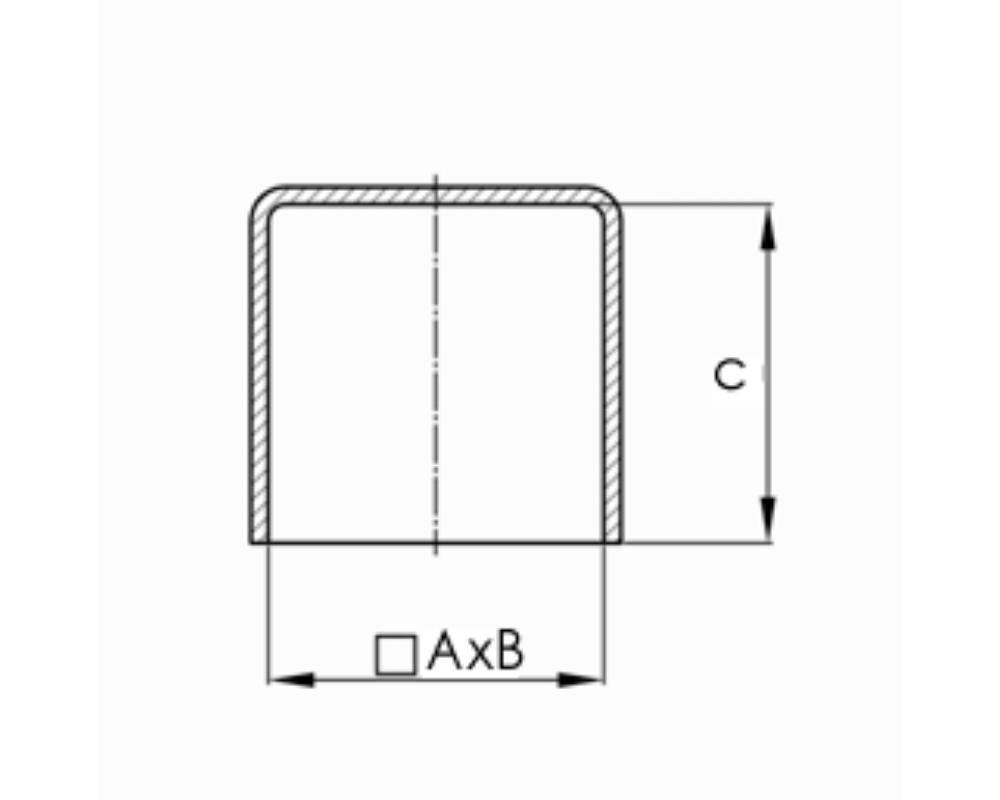

Plano técnico
Medidas disponibles
| Referencia | A (mm) | B (mm) | C (mm) |
|---|---|---|---|
| 199-8-2-15 | 8 | 2 | 15 |
| 199-8-4-15 | 8 | 4 | 15 |
| 199-10-1,5-15 | 10 | 1.5 | 15 |
| 199-10-3-15 | 10 | 3 | 15 |
| 199-10-8-25 | 10 | 8 | 25 |
| 199-10-10-25 | 10 | 10 | 25 |
| 199-12-4-15 | 12 | 4 | 15 |
| 199-12-6-25 | 12 | 6 | 25 |
| 199-12-12-30 | 12 | 12 | 30 |
| 199-13-2,5-20 | 13 | 2.5 | 20 |
| 199-13-5-15 | 13 | 5 | 15 |
| 199-14-8-25 | 14 | 8 | 25 |
| 199-15-1,5-15 | 15 | 1.5 | 15 |
| 199-15-3-20 | 15 | 3 | 20 |
| 199-15-6-25 | 15 | 6 | 25 |
| 199-15-8-25 | 15 | 8 | 25 |
| 199-15-15-25 | 15 | 15 | 25 |
| 199-16-2-20 | 16 | 2 | 20 |
| 199-18-3-20 | 18 | 3 | 20 |
| 199-18-18-30 | 18 | 18 | 30 |
| 199-19-2-20 | 19 | 2 | 20 |
| 199-19-8-25 | 19 | 8 | 25 |
| 199-20-2-20 | 20 | 2 | 20 |
| 199-20-3-25 | 20 | 3 | 25 |
| 199-20-4-25 | 20 | 4 | 25 |
| 199-20-5-20 | 20 | 5 | 20 |
| 199-20-6-25 | 20 | 6 | 25 |
| 199-20-8-25 | 20 | 8 | 25 |
| 199-20-10-25 | 20 | 10 | 25 |
| 199-20-20-30 | 20 | 20 | 30 |
| 199-23-4-25 | 23 | 4 | 25 |
| 199-24-2-20 | 24 | 2 | 20 |
| 199-25-3-25 | 25 | 3 | 25 |
| 199-25-5-25 | 25 | 5 | 25 |
| 199-25-8-25 | 25 | 8 | 25 |
| 199-25-10-25 | 25 | 10 | 25 |
| 199-25-15-25 | 25 | 15 | 25 |
| 199-25-25-30 | 25 | 25 | 30 |
| 199-28-4-25 | 28 | 4 | 25 |
| 199-29-5-25 | 29 | 5 | 25 |
| 199-30-2-20 | 30 | 2 | 20 |
| 199-30-3-20 | 30 | 3 | 20 |
| 199-30-4-25 | 30 | 4 | 25 |
| 199-30-5-25 | 30 | 5 | 25 |
| 199-30-8-25 | 30 | 8 | 25 |
| 199-30-10-30 | 30 | 10 | 30 |
| 199-30-12-30 | 30 | 12 | 30 |
| 199-30-15-30 | 30 | 15 | 30 |
| 199-30-20-30 | 30 | 20 | 30 |
| 199-30-25-30 | 30 | 25 | 30 |
| 199-30-30-40 | 30 | 30 | 40 |
| 199-34-2-20 | 34 | 2 | 20 |
| 199-34-34-40 | 34 | 34 | 40 |
| 199-35-8-25 | 35 | 8 | 25 |
| 199-35-10-30 | 35 | 10 | 30 |
| 199-35-25-30 | 35 | 25 | 30 |
| 199-35-35-40 | 35 | 35 | 40 |
| 199-38-3-25 | 38 | 3 | 25 |
| 199-40-3-25 | 40 | 3 | 25 |
| 199-40-4-25 | 40 | 4 | 25 |
| 199-40-8-25 | 40 | 8 | 25 |
| 199-40-10-30 | 40 | 10 | 30 |
| 199-40-15-30 | 40 | 15 | 30 |
| 199-40-20-30 | 40 | 20 | 30 |
| 199-40-25-30 | 40 | 25 | 30 |
| 199-40-25-50 | 40 | 25 | 50 |
| 199-40-30-40 | 40 | 30 | 40 |
| 199-40-40-40 | 40 | 40 | 40 |
| 199-45-8-25 | 45 | 8 | 25 |
| 199-45-24-30 | 45 | 24 | 30 |
| 199-45-30-40 | 45 | 30 | 40 |
| 199-45-45-40 | 45 | 45 | 40 |
| 199-50-5-25 | 50 | 5 | 25 |
| 199-50-10-30 | 50 | 10 | 30 |
| 199-50-12-30 | 50 | 12 | 30 |
| 199-50-20-20 | 50 | 20 | 20 |
| 199-50-20-30 | 50 | 20 | 30 |
| 199-50-25-30 | 50 | 25 | 30 |
| 199-50-30-40 | 50 | 30 | 40 |
| 199-50-40-40 | 50 | 40 | 40 |
| 199-50-50-40 | 50 | 50 | 40 |
| 199-55-12-30 | 55 | 12 | 30 |
| 199-55-35-40 | 55 | 35 | 40 |
| 199-60-5-25 | 60 | 5 | 25 |
| 199-60-10-30 | 60 | 10 | 30 |
| 199-60-15-30 | 60 | 15 | 30 |
| 199-60-30-40 | 60 | 30 | 40 |
| 199-60-40-40 | 60 | 40 | 40 |
| 199-60-60-40 | 60 | 60 | 40 |
| 199-65-65-40 | 65 | 65 | 40 |
| 199-70-40-40 | 70 | 40 | 40 |
| 199-76-2-20 | 76 | 2 | 20 |
| 199-80-80-40 | 80 | 80 | 40 |
| 199-90-50-40 | 90 | 50 | 40 |
| 199-100-50-40 | 100 | 50 | 40 |
| 199-100-60-40 | 100 | 60 | 40 |
| 199-100-100-40 | 100 | 100 | 40 |
Todas las medidas expresadas en milímetros (mm). ¿No encuentra su medida exacta? Consúltenos, fabricamos a medida.
Solicite información o presupuesto
Indíquenos las medidas y cantidades que necesita. Le responderemos en menos de 24 horas laborables, sin compromiso.
