Protecciones para Tuercas y Tornillos
Capuchón protector perno largo y tuerca
Referencia 1D3
Capuchón protector perno largo y tuerca
Referencia1D3
MaterialLDPE
ColorNegro
Sectores de aplicaciónAutomociónAeronáuticaAutomatizaciónHidráulica y NeumáticaMaquinaria AgrícolaMecanizados y Transformados
Solicitar presupuesto →
Descripción
Los tapones contra la corrosión 1D3 para tornillos y tuercas ofrecen la máxima protección contra la oxidación tanto para los tornillos como para la tuerca hexagonal. Fabricados en LDPE, PEBD, polietileno de baja densidad.

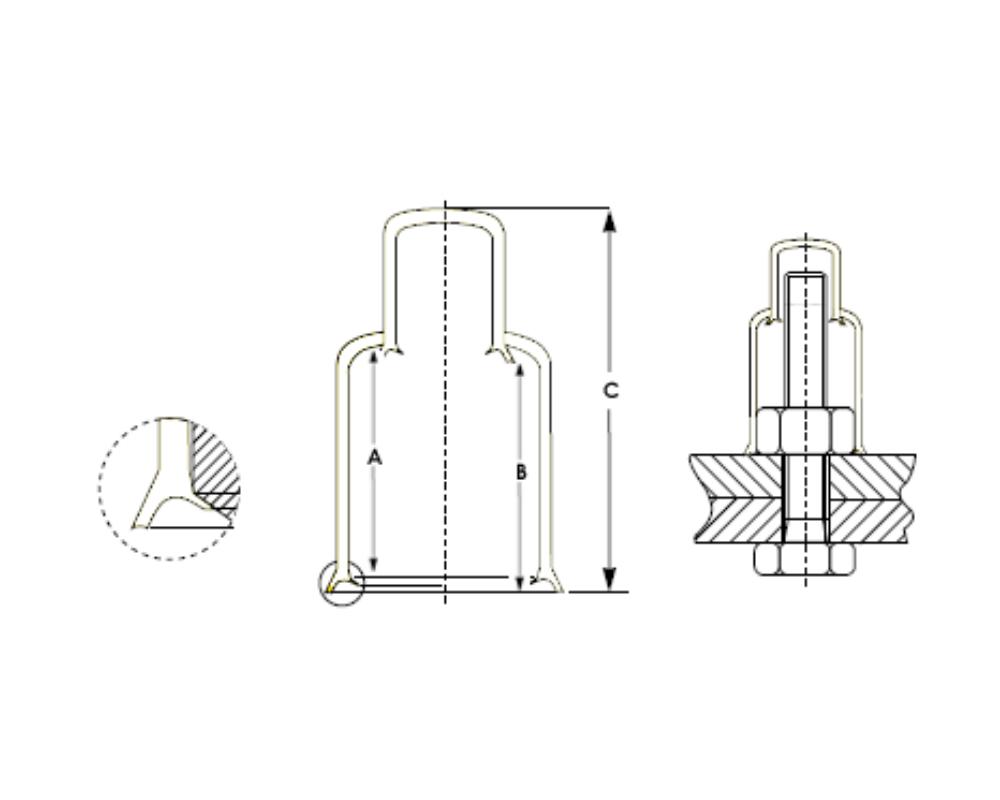

Plano técnico
Medidas disponibles
| Referencia | A (mm) | B (mm) | C (mm) | ROSCA |
|---|---|---|---|---|
| 1D3-M16-33.5 | 36.0 | 33.5 | 57.0 | M16/.9/16" |
| 1D3-M16-33.5 | 36.0 | 33.5 | 73.0 | M16/.9/16" |
| 1D3-M16-49.2 | 52.0 | 49.2 | 73.0 | M16/.9/16" |
| 1D3-M16-49.2 | 52.0 | 49.2 | 89.0 | M16/.9/16" |
| 1D3-M20-33.5 | 36.0 | 33.5 | 57.0 | M20 |
| 1D3-M20-33.5 | 36.0 | 33.5 | 78.0 | M20 |
| 1D3-M20-116.0 | 119.0 | 116.0 | 140.0 | M20 |
| 1D3-M20-116.0 | 119.0 | 116.0 | 161.0 | M20 |
| 1D3-M24-41.8 | 45.0 | 41.8 | 70.0 | M24/.7/8" |
| 1D3-M24-41.8 | 45.0 | 41.8 | 99.0 | M24/.7/8" |
| 1D3-M24-71.1 | 75.0 | 71.1 | 99.0 | M24/.7/8" |
| 1D3-M24-71.1 | 75.0 | 71.1 | 132.0 | M24/.7/8" |
| 1D3-M27-50.1 | 54.0 | 50.1 | 78.0 | M27/1." |
| 1D3-M27-104.5 | 106.5 | 104.5 | 161.0 | M27/1." |
| 1D3-M27-50.1 | 54.0 | 50.1 | 102.0 | M27/1." |
| 1D3-M27-73.8 | 78.0 | 73.8 | 184.0 | M27/1." |
| 1D3-M30-50.7 | 53.0 | 50.7 | 79.0 | M30/1.1/8" |
| 1D3-M30/-50.7 | 53.0 | 50.7 | 161.0 | M30/1.1/8" |
| 1D3-M30-145.5 | 150.0 | 145.5 | 174.0 | M30/1.1/8" |
| 1D3-M30-145.5 | 150.0 | 145.5 | 256.0 | M30/1.1/8" |
| 1D3-M33-53.3 | 58.0 | 53.3 | 90.0 | M33/1.1/4" |
| 1D3-M33-79.2 | 87.0 | 79.2 | 163.0 | M33/1.1/4" |
| 1D3-M33-53.3 | 58.0 | 53.3 | 116.0 | M33/1.1/4" |
| 1D3-M33-79.2 | 87.0 | 79.2 | 189.0 | M33/1.1/4" |
| 1D3-M36-56.8 | 60.0 | 56.8 | 93.0 | M36/1.3/8" |
| 1D3-M36-56.8 | 60.0 | 56.8 | 166.0 | M36/1.3/8" |
| 1D3-M36-161.4 | 165.0 | 161.4 | 198.0 | M36/1.3/8" |
| 1D3-M36-273.0 | 276.0 | 273.0 | 271.0 | M36/1.3/8" |
| 1D3-M39-57.1 | 61.0 | 57.1 | 102.0 | M39/1.1/2" |
| 1D3-M39-57.1 | 61.0 | 57.1 | 125.0 | M39/1.1/2" |
| 1D3-M39-109.4 | 113.0 | 109.4 | 154.0 | M39/1.1/2" |
| 1D3-M39-109.4 | 113.0 | 109.4 | 178.0 | M39/1.1/2" |
| 1D3-M42-57.2 | 64.0 | 57.2 | 102.0 | M42/1.5/8" |
| 1D3-M42-57.2 | 64.0 | 57.2 | 126.0 | M42/1.5/8" |
| 1D3-M42-123.0 | 126.0 | 123.0 | 168.0 | M42/1.5/8" |
| 1D3-M42-123.0 | 126.0 | 123.0 | 191.0 | M42/1.5/8" |
| 1D3-M45-65.0 | 62.0 | 65.0 | 107.0 | M45/1.3/4" |
| 1D3-M45-113.5 | 118.0 | 113.5 | 202.0 | M45/1.3/4" |
| 1D3-M45-65.0 | 62.0 | 65.0 | 159.0 | M45/1.3/4" |
| 1D3-M45-113.5 | 118.0 | 113.5 | 254.0 | M45/1.3/4" |
| 1D3-M48-63.0 | 70.0 | 63.0 | 108.0 | M48/1.7/8" |
| 1D3-M48-92.8 | 97.0 | 92.8 | 203.0 | M48/1.7/8" |
| 1D3-M48-63.0 | 70.0 | 63.0 | 138.0 | M48/1.7/8" |
| 1D3-M48-23,5.5 | 239.0 | 23,5.5 | 233.0 | M48/1.7/8" |
| 1D3-M52-71.0 | 77.0 | 71.0 | 119.0 | M52 |
| 1D3-M52-71.0 | 77.0 | 71.0 | 145.0 | M52 |
| 1D3-M52-179.6 | 182.0 | 179.6 | 178.0 | M52 |
| 1D3-M52-130.0 | 133.0 | 130.0 | 204.0 | M52 |
| 1D3-M56-71.3 | 75.0 | 71.3 | 123.0 | M56 |
| 1D3-M56-133.6 | 138.0 | 133.6 | 227.0 | M56 |
| 1D3-M56-71.3 | 75.0 | 71.3 | 185.0 | M56 |
| 1D3-M56-133.6 | 138.0 | 133.6 | 290.0 | M56 |
| 1D3-M60-84.0 | 88.0 | 84.0 | 136.0 | M60 |
| 1D3-M60-84.0 | 88.0 | 84.0 | 188.0 | M60 |
| 1D3-M60-145.0 | 145.0 | 145.0 | 192.0 | M60 |
| 1D3-M60-145.0 | 145.0 | 145.0 | 244.0 | M60 |
| 1D3-M64-85.4 | 90.0 | 85.4 | 137.0 | M64 |
| 1D3-M64-143.0 | 148.0 | 143.0 | 203.0 | M64 |
| 1D3-M64-85.4 | 90.0 | 85.4 | 195.0 | M64 |
| 1D3-M64-143.0 | 148.0 | 143.0 | 261.0 | M64 |
| 1D3-M68-89.8 | 94.0 | 89.8 | 146.0 | M68 |
| 1D3-M68-89.8 | 94.0 | 89.8 | 198.0 | M68 |
| 1D3-M68-150.0 | 156.0 | 150.0 | 207.0 | M68 |
| 1D3-M68-150.0 | 156.0 | 150.0 | 258.0 | M68 |
| 1D3-M72-92.7 | 98.0 | 92.7 | 150.0 | M72 |
| 1D3-M72-92.7 | 98.0 | 92.7 | 180.0 | M72 |
| 1D3-M72-149.1 | 154.0 | 149.1 | 207.0 | M72 |
| 1D3-M72-149.1 | 154.0 | 149.1 | 236.0 | M72 |
Todas las medidas expresadas en milímetros (mm). ¿No encuentra su medida exacta? Consúltenos, fabricamos a medida.
Solicite información o presupuesto
Indíquenos las medidas y cantidades que necesita. Le responderemos en menos de 24 horas laborables, sin compromiso.
