Capuchones Roscados
Capuchón roscado
Referencia 1A1
Capuchón roscado
Referencia1A1
MaterialLDPE
ColorAmarillo
Sectores de aplicaciónAutomociónAeronáuticaAutomatizaciónHidráulica y NeumáticaMaquinaria AgrícolaMecanizados y Transformados
Solicitar presupuesto →
Descripción
Usado en las industrias de automoción, de fluidos e ingeniería, protege los componentes roscados del polvo, la humedad y los daños durante la producción, el almacenamiento y el transporte.

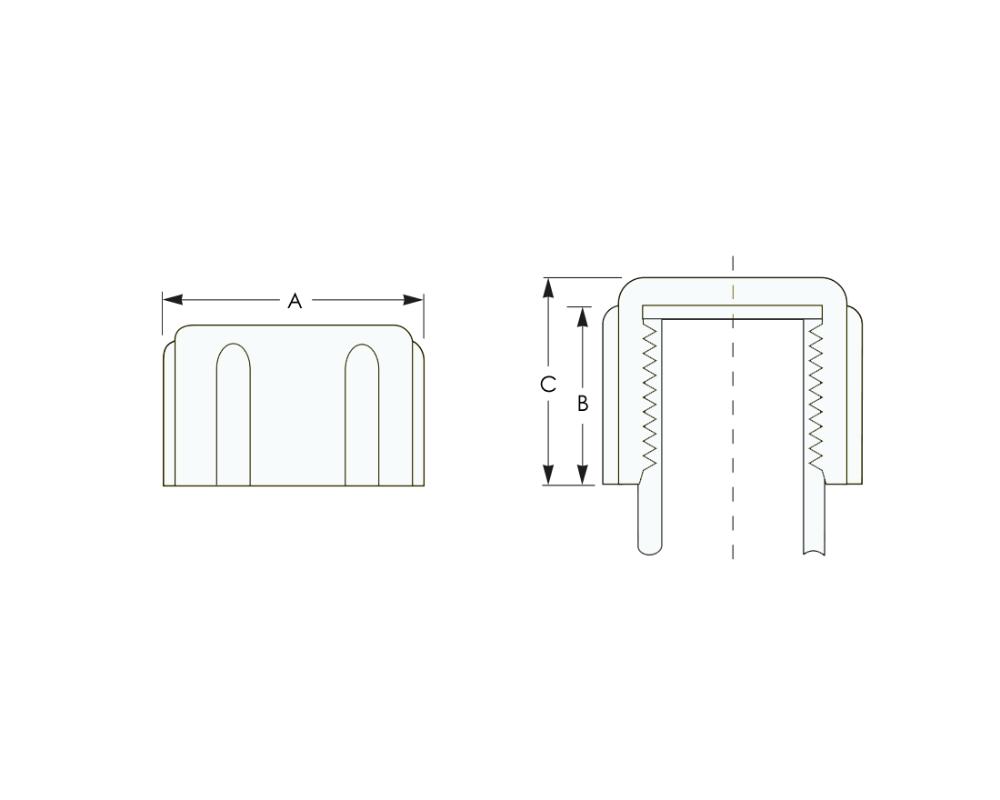

Plano técnico
Medidas disponibles
| Referencia | A (mm) | B (mm) | C (mm) |
|---|---|---|---|
| 1A1-.1/2"-20U | 15.0 | 18.0 | 16.5 |
| 1A1-.3/4"-16U | 18.0 | 24.0 | 19.5 |
| 1A1-.5/8"-18U | 14.2 | 19.3 | 15.0 |
| 1A1-.7/8"-14U | 20.0 | 27.0 | 21.5 |
| 1A1-7/16"-20U | 12.0 | 15.0 | 13.5 |
| 1A1-9/16"-18U | 12.0 | 18.0 | 13.5 |
| 1A1-1.1/16"-12U | 22.2 | 34.0 | 24.0 |
| 1A1-1.5/8"-12U | 17.0 | 50.0 | 19.0 |
| 1A1-1.5/16"-12U | 24.0 | 40.0 | 26.0 |
| 1A1-1.7/8"-12U | 18.0 | 55.0 | 20.0 |
| 1A1-G.1/2" | 14.0 | 25.4 | 15.5 |
| 1A1-G.1/4" | 12.0 | 18.0 | 13.5 |
| 1A1-G.3/4" | 14.0 | 32.0 | 16.0 |
| 1A1-G.3/8" | 12.0 | 21.0 | 13.5 |
| 1A1-G.5/8" | 14.0 | 28.0 | 15.5 |
| 1A1-G.1." | 14.0 | 39.5 | 16.0 |
| 1A1-G1.1/2" | 17.0 | 56.0 | 19.0 |
| 1A1-G1.1/4" | 17.7 | 47.7 | 19.7 |
| 1A1-G 2." | 18.0 | 67.0 | 20.0 |
| 1A1-M 10 | 8.0 | 14.0 | 9.0 |
| 1A1-M 12 | 12.0 | 16.0 | 13.5 |
| 1A1-M 14 | 12.0 | 18.0 | 13.5 |
| 1A1-M 16 | 11.7 | 21.0 | 13.1 |
| 1A1-M 18 | 12.0 | 22.0 | 13.5 |
| 1A1-M 20 | 14.0 | 25.0 | 15.5 |
| 1A1-M 22 | 14.0 | 28.0 | 15.5 |
| 1A1-M 24 | 14.0 | 30.0 | 15.5 |
| 1A1-M 26 | 11.0 | 34.0 | 13.0 |
| 1A1-M 30 | 14.0 | 38.0 | 16.0 |
| 1A1-M 36 | 17.3 | 44.0 | 19.0 |
| 1A1-M 42 | 15.0 | 50.0 | 17.0 |
| 1A1-M 45 | 14.4 | 53.0 | 16.5 |
| 1A1-M 52 | 15.0 | 60.0 | 17.0 |
| 1A1-.1/2"-20U | 14.1 | 17.0 | 15.3 |
| 1A1-.3/4"-16U | 17.6 | 23.6 | 19.2 |
| 1A1-.3/8"-24U | 11.3 | 13.6 | 12.5 |
| 1A1-.5/8"-18U | 18.0 | 20.3 | 19.4 |
| 1A1-.7/8"-14U | 19.5 | 27.0 | 21.2 |
| 1A1-7/16"-20U | 11.9 | 15.6 | 13.3 |
| 1A1-9/16"-18U | 12.5 | 18.7 | 13.9 |
| 1A1-.11/16"-16U | 10.5 | 21.2 | 11.8 |
| 1A1-.13/16"-16U | 14.2 | 24.7 | 15.5 |
| 1A1-1.1/16"-12U | 20.1 | 31.7 | 21.7 |
| 1A1-1.3/16"-12U | 21.1 | 35.0 | 22.7 |
| 1A1-1.5/16"-12U | 21.1 | 39.3 | 22.9 |
| 1A1-1.7/16"-12U | 21.0 | 44.0 | 22.8 |
| 1A1-1"-14U | 16.1 | 30.0 | 17.3 |
| 1A1-G.1/2" | 14.0 | 24.8 | 15.4 |
| 1A1-G.1/4" | 10.3 | 16.3 | 11.3 |
| 1A1-G.1/8" | 8.5 | 12.9 | 9.6 |
| 1A1-G.3/4" | 15.1 | 30.5 | 16.5 |
| 1A1-G.3/8" | 13.1 | 20.5 | 14.1 |
| 1A1-G.5/8" | 14.0 | 28.0 | 15.5 |
| 1A1-G 1." | 18.0 | 39.0 | 19.5 |
| 1A1-G1.1/2" | 16.7 | 56.5 | 18.7 |
| 1A1-G1.1/4" | 15.8 | 47.0 | 17.3 |
| 1A1-G 2." | 18.6 | 65.0 | 20.1 |
| 1A1-M 8 | 11.0 | 12.0 | 12.0 |
| 1A1-M10 | 12.9 | 14.2 | 14.2 |
| 1A1-M12x1 | 12.7 | 16.4 | 14.2 |
| 1A1-M12x1,5 | 12.7 | 16.4 | 14.2 |
| 1A1-M14 | 12.8 | 18.2 | 14.1 |
| 1A1-M16 | 12.8 | 20.0 | 14.2 |
| 1A1-M18 | 13.8 | 22.0 | 15.2 |
| 1A1-M20 | 14.6 | 24.2 | 16.1 |
| 1A1-M22 | 14.7 | 26.5 | 16.2 |
| 1A1-M24 | 14.7 | 28.6 | 16.2 |
| 1A1-M26 | 13.5 | 30.8 | 15.3 |
| 1A1-M27 | 13.5 | 32.0 | 15.3 |
| 1A1-M30x1.5 | 14.5 | 35.0 | 16.3 |
| 1A1-M30x2 | 14.5 | 35.0 | 16.2 |
| 1A1-M36x1.5 | 16.8 | 42.0 | 18.6 |
| 1A1- M36x2 | 16.8 | 42.0 | 18.6 |
| 1A1-M42 | 15.7 | 50.0 | 17.7 |
| 1A1-M45x1.5 | 18.7 | 51.0 | 20.3 |
| 1A1-M45x2 | 18.7 | 51.0 | 20.3 |
| 1A1-M52 | 19.0 | 59.0 | 20.5 |
Todas las medidas expresadas en milímetros (mm). ¿No encuentra su medida exacta? Consúltenos, fabricamos a medida.
Solicite información o presupuesto
Indíquenos las medidas y cantidades que necesita. Le responderemos en menos de 24 horas laborables, sin compromiso.
