Pies
Regulable con base plana y hexagonal
Referencia 341D
Regulable con base plana y hexagonal
Referencia341D
MaterialPE
ColorNegro
Sectores de aplicaciónMobiliario y Maquinaria IndustrialMaquinaria Agrícola
Solicitar presupuesto →
Descripción
Pie regulable, fabricado en polipropileno. Base plana con hexágono.

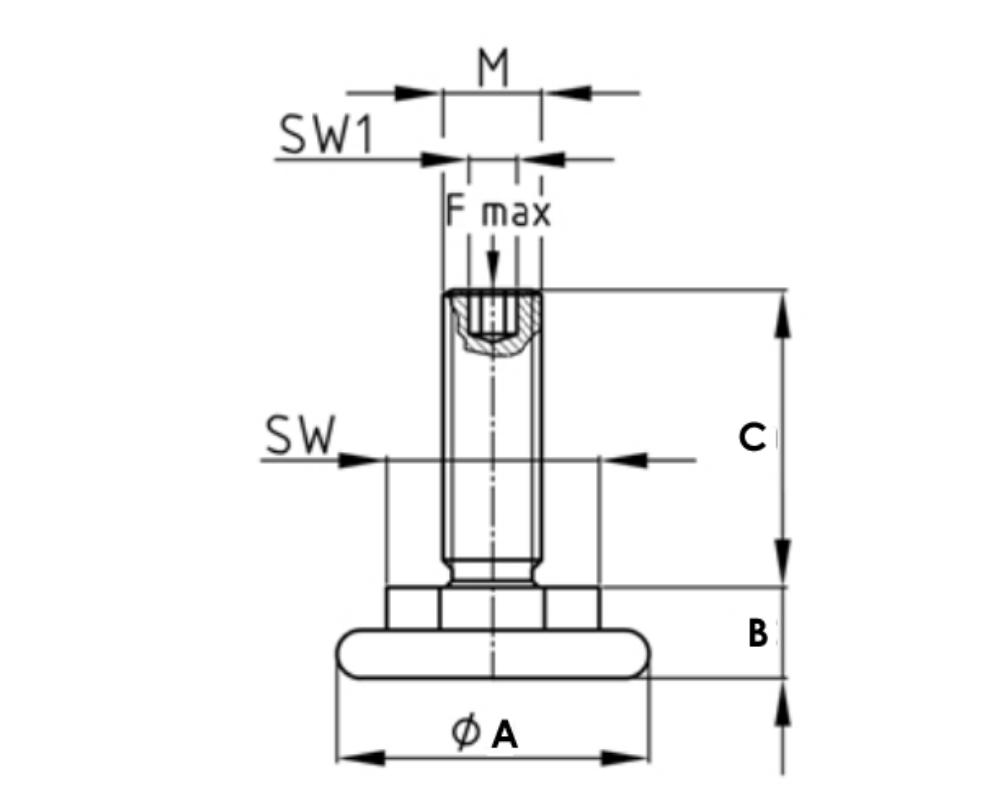

Plano técnico
Medidas disponibles
| Referencia | A (mm) | B (mm) | C (mm) | D (mm) | SW (mm) | SW1 (mm) |
|---|---|---|---|---|---|---|
| 341D-35 M8x18 | 35.0 | 12.5 | 18.0 | 21.0 | 4.0 | |
| 341D-35 M8x23P | 35.0 | 12.5 | 23.0 | 21.0 | ||
| 341D-35 M8x28P | 35.0 | 12.5 | 28.0 | 21.0 | ||
| 341D-35 M8x33P | 35.0 | 12.5 | 33.0 | 21.0 | ||
| 341D-35 M8x43 | 35.0 | 12.5 | 43.0 | 21.0 | 4.0 | |
| 341D-35 M10x15 | 35.0 | 12.5 | 15.0 | 21.0 | 5.0 | |
| 341D-35 M10x25 | 35.0 | 12.5 | 25.0 | 21.0 | 5.0 | |
| 341D-35 M10x30 | 35.0 | 12.5 | 30.0 | 21.0 | 5.0 | |
| 341D-35 M10x35 | 35.0 | 12.5 | 35.0 | 21.0 | 5.0 | |
| 341D-35 M10x40 | 35.0 | 12.5 | 40.0 | 21.0 | 5.0 | |
| 341D-35 M10x45 | 35.0 | 12.5 | 45.0 | 21.0 | 5.0 | |
| 341D-35 M10x55 | 35.0 | 12.5 | 55.0 | 21.0 | 5.0 | |
| 341D-35 M10x65 | 35.0 | 12.5 | 65.0 | 21.0 | 5.0 | |
| 341D-50 M10x10 | 50.0 | 30.0 | 16.5 | 10.0 | 21.0 | 5.0 |
| 341D-50 M10x20 | 50.0 | 30.0 | 16.5 | 20.0 | 21.0 | 5.0 |
| 341D-50 M10x25 | 50.0 | 30.0 | 16.5 | 25.0 | 21.0 | 5.0 |
| 341D-50 M10x30 | 50.0 | 30.0 | 16.5 | 30.0 | 21.0 | 5.0 |
| 341D-50 M10x35 | 50.0 | 30.0 | 16.5 | 35.0 | 21.0 | 5.0 |
| 341D-50 M10x40 | 50.0 | 30.0 | 16.5 | 40.0 | 21.0 | 5.0 |
| 341D-50 M10x60 | 50.0 | 30.0 | 16.5 | 60.0 | 21.0 | 5.0 |
| 341D-80 M10x20 | 80.0 | 17.5 | 20.0 | 22.0 | 5.0 | |
| 341D-80 M10x25 | 80.0 | 17.5 | 25.0 | 22.0 | 5.0 | |
| 341D-80 M10x30 | 80.0 | 17.5 | 30.0 | 22.0 | 5.0 | |
| 341D-80 M10x35 | 80.0 | 17.5 | 35.0 | 22.0 | 5.0 | |
| 341D-80 M10x40 | 80.0 | 17.5 | 40.0 | 22.0 | 5.0 | |
| 341D-80 M10x50 | 80.0 | 17.5 | 50.0 | 22.0 | 5.0 | |
| 341D-80 M10x60 | 80.0 | 17.5 | 60.0 | 22.0 | 5.0 | |
| 341D-80 M12x25 | 80.0 | 17.5 | 25.0 | 22.0 | ||
| 341D-80 M12x50 | 80.0 | 17.5 | 50.0 | 22.0 |
Todas las medidas expresadas en milímetros (mm). ¿No encuentra su medida exacta? Consúltenos, fabricamos a medida.
