Tapones
Capuchón de silicona con reborde
Referencia 231T
Capuchón de silicona con reborde
Referencia231T
MaterialSilicona
ColorVarios
Sectores de aplicaciónAutomociónAeronáuticaTratamientos Superficiales
Solicitar presupuesto →
Descripción
Disponibles en diferentes medidas y colores. Hasta 315ºC.

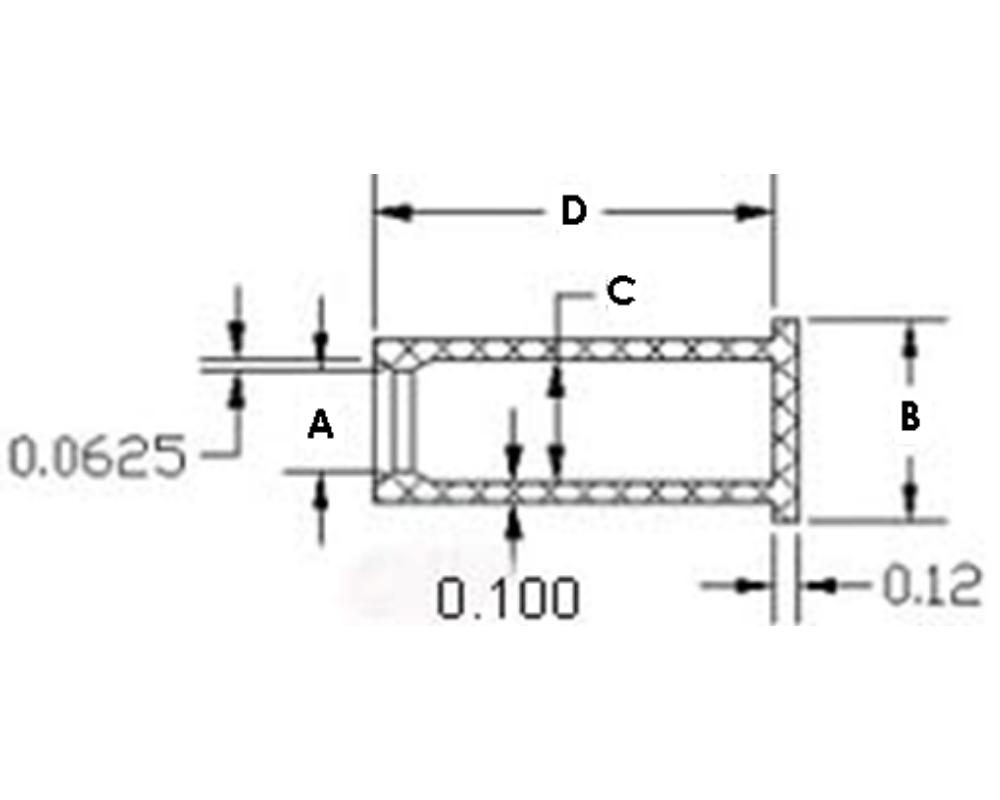

Plano técnico
Medidas disponibles
| Referencia | A (mm) | B (mm) | C (mm) | D (mm) |
|---|---|---|---|---|
| 231T-0125-2000 | 3.18 | 16.51 | 6.35 | 50.8 |
| 231T-0135-1180 | 3.43 | 16.76 | 6.6 | 29.97 |
| 231T-0156-2000 | 3.96 | 17.3 | 7.14 | 50.8 |
| 231T-0157-1180 | 3.99 | 17.32 | 7.16 | 29.97 |
| 231T-0165-1016 | 4.19 | 17.53 | 7.37 | 25.8064 |
| 231T-0177-1180 | 4.5 | 17.83 | 7.67 | 29.972 |
| 231T-0180-2000 | 4.57 | 17.91 | 7.75 | 50.8 |
| 231T-0187-1377 | 4.75 | 18.08 | 7.92 | 34.98 |
| 231T-0187-1747 | 4.75 | 18.08 | 7.92 | 44.3738 |
| 231T-0197-1180 | 5.0 | 15.8 | 9.4 | 37.0 |
| 231T-0234-2000 | 5.94 | 19.28 | 9.12 | 50.8 |
| 231T-0236-1180 | 5.99 | 19.33 | 9.17 | 29.97 |
| 231T-0255-0910 | 6.48 | 19.81 | 9.65 | 23.11 |
| 231T-0255-1180 | 6.48 | 19.81 | 9.65 | 29.97 |
| 231T-0270-1200 | 6.86 | 20.19 | 10.03 | 30.48 |
| 231T-0275-1180 | 6.99 | 20.32 | 10.16 | 29.97 |
| 231T-0294-1330 | 7.47 | 20.8 | 10.64 | 33.78 |
| 231T-0315-0974 | 8.0 | 21.34 | 11.18 | 24.74 |
| 231T-0315-1180 | 8.0 | 21.34 | 11.18 | 29.97 |
| 231T-0315-1425 | 8.0 | 21.34 | 11.18 | 36.195 |
| 231T-0320-0670 | 8.13 | 21.46 | 11.3 | 17.018 |
| 231T-0330-1500 | 8.38 | 21.72 | 11.56 | 38.1 |
| 231T-0355-1500 | 9.02 | 22.35 | 12.19 | 38.1 |
| 231T-0360-1000 | 9.14 | 22.48 | 12.32 | 25.4 |
| 231T-0375-1000 | 9.53 | 22.86 | 12.7 | 25.4 |
| 231T-0375-1421 | 9.53 | 22.86 | 12.7 | 36.09 |
| 231T-0380-1000 | 9.65 | 22.99 | 12.83 | 25.4 |
| 231T-0394-1180 | 10.01 | 23.34 | 13.18 | 29.972 |
| 231T-0433-1180 | 11.0 | 24.33 | 14.17 | 29.97 |
| 231T-0438-0950 | 11.13 | 24.46 | 14.3 | 24.13 |
| 231T-0451-1215 | 11.46 | 24.79 | 14.63 | 30.86 |
| 231T-0451-2000 | 11.46 | 24.79 | 14.63 | 50.8 |
| 231T-0485-0500 | 12.32 | 25.65 | 15.49 | 12.7 |
| 231T-0485-0750 | 12.32 | 25.65 | 15.49 | 19.05 |
| 231T-0485-1013 | 12.32 | 25.65 | 15.49 | 25.73 |
| 231T-0485-1600 | 12.32 | 26.29 | 16.12 | 40.64 |
| 231T-0492-1180 | 12.5 | 25.83 | 15.67 | 29.97 |
| 231T-0531-1180 | 13.49 | 26.82 | 16.66 | 29.97 |
| 231T-0586-0512 | 14.88 | 28.22 | 18.06 | 13.0048 |
| 231T-0587-0374 | 14.91 | 28.24 | 18.08 | 9.5 |
| 231T-0608-0493 | 15.44 | 28.78 | 18.62 | 12.5222 |
| 231T-0608-0990 | 15.44 | 28.78 | 18.62 | 25.146 |
| 231T-0608-1180 | 15.44 | 28.78 | 18.62 | 29.97 |
| 231T-0622-1180 | 15.8 | 29.13 | 18.97 | 29.97 |
| 231T-0622-1575 | 15.8 | 29.13 | 18.97 | 40.01 |
| 231T-0687-1180 | 17.45 | 30.78 | 20.62 | 29.972 |
| 231T-0689-3579 | 17.5 | 30.84 | 20.68 | 90.9066 |
| 231T-0725-1500 | 18.42 | 30.96 | 21.59 | 38.1 |
| 231T-0725-3120 | 18.4 | 28.56 | 18.4 | 85.1 |
| 231T-0750-2000 | 19.05 | 30.73 | 21.59 | 50.8 |
| 231T-0850-0410 | 21.59 | 34.93 | 24.77 | 10.414 |
| 231T-0906-3500 | 23.01 | 36.35 | 26.19 | 88.9 |
| 231T-0963-3000 | 24.46 | 37.8 | 27.64 | 76.2 |
| 231T-0980-1500 | 24.89 | 38.23 | 28.07 | 38.1 |
| 231T-0980-1654 | 24.9 | 38.0 | 26.9 | 42.0 |
| 231T-1118-0540 | 28.4 | 41.73 | 31.57 | 13.716 |
| 231T-1125-5000 | 28.58 | 41.91 | 31.75 | 127.0 |
| 231T-1230-5000 | 31.24 | 44.58 | 34.42 | 127.0 |
| 231T-1240-1760 | 31.5 | 44.83 | 34.67 | 44.704 |
| 231T-1288-4128 | 32.72 | 46.05 | 35.89 | 104.8512 |
| 231T-1567-1517 | 39.8 | 53.14 | 42.98 | 38.53 |
| 231T-1850-1850 | 46.99 | 60.33 | 50.17 | 46.99 |
| 231T-1921-1575 | 48.79 | 62.13 | 51.97 | 40.01 |
| 231T-2244-1811 | 57.0 | 70.33 | 60.17 | 45.9994 |
| 231T-2250-1920 | 57.15 | 70.49 | 60.33 | 48.768 |
| 231T-2500-2420 | 63.5 | 76.84 | 66.68 | 61.468 |
| 231T-2660-0726 | 67.56 | 80.9 | 70.74 | 18.44 |
| 231T-2750-2670 | 69.9 | 84.4 | 74.3 | 69.6 |
| 231T-3000-2920 | 76.2 | 89.0 | 79.38 | 74.168 |
| 231T-3154-0730 | 80.11 | 92.68 | 83.29 | 18.54 |
| 231T-3189-0413 | 81.0 | 94.34 | 84.18 | 10.4902 |
| 231T-3200-0996 | 81.28 | 94.62 | 84.46 | 25.2984 |
| 231T-3248-0783 | 82.5 | 95.83 | 85.67 | 19.8882 |
| 231T-3287-0681 | 83.49 | 96.82 | 86.66 | 17.2974 |
| 231T-3362-0256 | 85.39 | 98.73 | 88.57 | 6.5024 |
| 231T-3425-0705 | 87.0 | 100.33 | 90.17 | 17.907 |
| 231T-3465-0819 | 88.01 | 101.35 | 91.19 | 20.8026 |
| 231T-3500-3420 | 88.9 | 102.24 | 92.08 | 86.868 |
| 231T-3622-0661 | 92.0 | 105.33 | 95.17 | 16.7894 |
Todas las medidas expresadas en milímetros (mm). ¿No encuentra su medida exacta? Consúltenos, fabricamos a medida.
