Tapón con tirador EPDM

Tapón con tirador EPDM
Tapones

Tapón con tirador EPDM

Referencia 238

Tapón con tirador EPDM

Referencia238
MaterialEPDM
ColorNegro
Sectores de aplicaciónAutomociónAeronáuticaTratamientos Superficiales
Solicitar presupuesto →

Descripción

Nuestra línea de producto 238, es la solución estándar de la industria para agujeros pasantes roscados y no roscados en aplicaciones de recubrimiento en polvo.

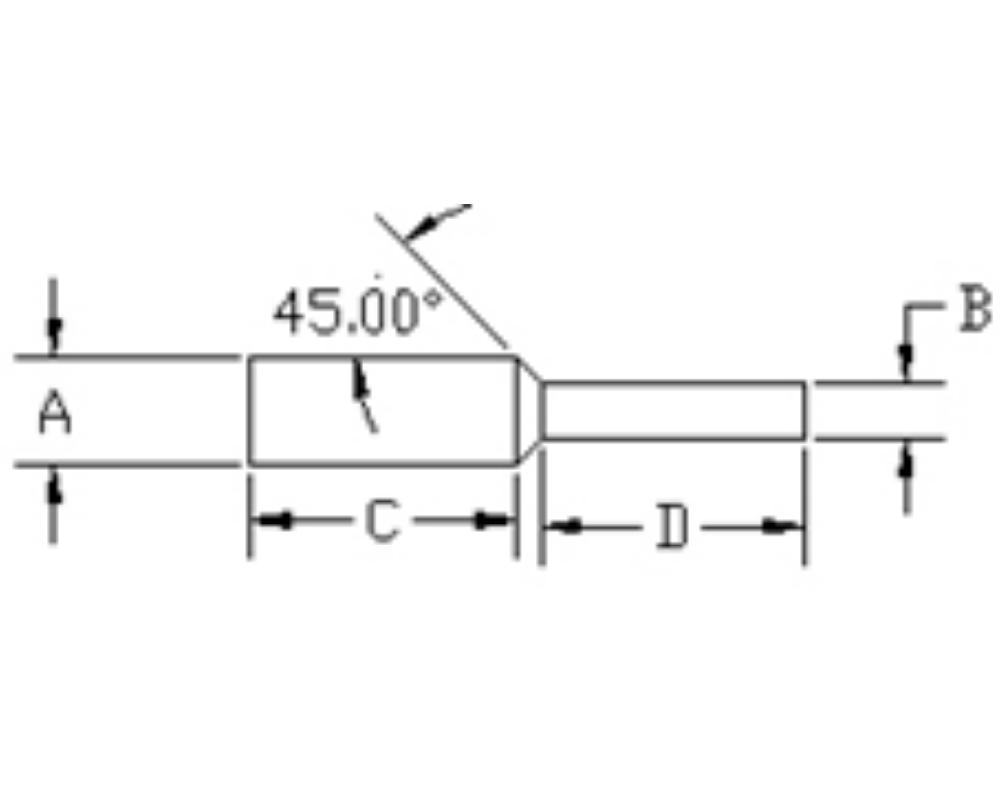

Plano técnico

Plano técnico referencia 238

Medidas disponibles

ReferenciaA (mm)B (mm)C (mm)D (mm)
238-0062-03751.571.179.538.5598
238-0062-05001.571.0212.712.7
238-0063-06251.61.1415.8815.875
238-0067-06251.71.1915.8815.494
238-0073-06121.851.1715.5414.986
238-0080-10002.031.1425.425.4
238-0091-06252.311.3215.8815.875
238-0091-10002.311.3225.425.4
238-0093-06252.361.2715.8815.875
238-0093-07002.361.617.7817.78
238-0095-10002.411.3225.425.4
238-0104-06252.641.5715.8815.875
238-0105-10002.672.0825.425.4
238-0109-06252.771.5715.8815.875
238-0109-10002.771.5725.425.4
238-0118-10003.02.0825.425.4
238-0125-06253.181.7815.8815.875
238-0130-06253.32.3615.8817.78
238-0130-10003.32.3625.425.4
238-0140-06253.562.1615.8814.1732
238-0142-12503.612.2931.7531.75
238-0154-06253.912.0315.8815.875
238-0156-06253.962.0315.8819.05
238-0156-12503.962.3631.7531.75
238-0158-10004.012.0825.425.4
238-0158-12504.012.0831.7531.75
238-0158-15004.012.3638.138.1
238-0160-07804.062.3919.8119.812
238-0162-06254.112.4415.8814.7574
238-0175-12504.453.1231.7531.75
238-0187-06254.752.7915.8815.875
238-0190-12504.833.5631.7531.75
238-0190-22504.832.7957.1557.15
238-0195-06254.952.7915.8815.875
238-0195-10004.952.7925.425.4
238-0195-12504.953.1831.7531.75
238-0197-10005.02.7925.425.4
238-0218-10005.543.325.425.4
238-0218-12505.543.331.7531.75
238-0225-10005.723.1825.425.4
238-0236-04005.994.510.1610.16
238-0236-12505.994.1931.7531.75
238-0244-12506.24.3231.7531.75
238-0250-12506.353.1831.7531.75
238-0257-10006.533.325.425.4
238-0257-12506.533.331.7531.75
238-0260-10006.63.325.425.4
238-0265-12506.734.7231.7531.75
238-0275-09376.993.1823.823.368
238-0275-20006.993.7150.850.8
238-0281-10007.143.5125.425.4
238-0281-12507.143.5131.7531.75
238-0295-11817.54.530.029.9999
238-0312-10007.923.7325.425.4
238-0312-12507.923.8631.7531.75
238-0316-10008.033.8625.421.59
238-0332-11258.436.3528.5820.2946
238-0333-07578.466.3819.2326.67
238-0335-10008.513.8925.425.4
238-0335-12508.513.8931.7531.75
238-0350-09008.894.922.8625.4
238-0355-10009.023.9925.425.4
238-0370-11819.44.730.029.9974
238-0375-10009.533.9925.425.4
238-0375-12509.534.7531.7531.75
238-0384-10009.753.9125.425.4
238-0384-12509.753.9131.7531.75
238-0384-20009.753.9150.850.8
238-0388-10009.863.9925.425.4
238-0400-050010.163.9912.712.7
238-0400-100010.163.9925.425.4
238-0408-100010.364.8525.6325.4
238-0414-052510.523.9913.3419.177
238-0414-100010.523.9925.425.4
238-0437-150011.17.6238.138.1
238-0440-100011.186.625.425.4
238-0440-200011.183.9950.850.8
238-0444-100011.286.4825.425.146
238-0444-125011.286.4831.7531.75
238-0445-100011.36.4825.425.4
238-0468-100011.896.3525.425.4
238-0472-100011.996.1725.425.4
238-0496-100012.66.3525.425.4
238-0496-200012.66.3550.850.8
238-0500-100012.76.3525.425.4
238-0510-100012.956.525.424.2824
238-0530-100013.466.3525.425.4
238-0530-206213.466.3552.3752.3748
238-0551-118114.06.3530.029.9974
238-0570-100014.487.9225.425.4
238-0571-175014.57.744.4544.45
238-0580-150014.738.038.138.1
238-0590-100014.996.3525.425.4
238-0612-100015.546.3525.425.4
238-0612-200015.548.2650.850.8
238-0620-150015.758.3638.138.1
238-0640-100016.269.5325.425.4
238-0640-177216.269.5345.0145.0088
238-0670-150017.0211.9438.138.1
238-0670-175017.0211.9644.4538.1
238-0700-100017.789.5325.425.4
238-0700-125017.789.5331.7531.75
238-0700-150017.789.5338.138.1
238-0707-125017.969.5331.7533.6804
238-0728-112518.499.5328.5827.94
238-0729-100018.528.025.425.4
238-0729-150018.529.838.138.1
238-0750-100019.059.5325.425.4
238-0770-100019.569.5325.423.5458
238-0770-112519.569.5328.5828.575
238-0770-150019.5610.3638.138.1
238-0770-196019.5610.3649.7853.34
238-0798-065020.2710.1616.5120.32
238-0807-125020.59.531.7531.75
238-0807-150020.510.8738.138.1
238-0809-100020.558.025.425.4
238-0843-200021.419.5350.850.8
238-0850-225021.5911.4357.1557.15
238-0888-100022.569.4525.425.4
238-0896-100022.769.5325.425.4
238-0897-150022.789.5338.138.1
238-1000-100025.49.5325.425.4
238-1020-100025.919.5325.424.638
238-1020-125025.919.5331.7531.75
238-1181-196930.012.050.029.9974
238-1220-125030.999.5331.7531.75
238-1280-196932.515.050.029.9999
238-1380-100035.0512.725.425.4
238-1380-150035.0518.5738.138.1
238-1450-100036.8312.725.425.4
238-1575-137840.0119.9935.035.0012
238-1653-196942.022.550.029.9999
238-1713-275643.5122.070.070.0024

Todas las medidas expresadas en milímetros (mm). ¿No encuentra su medida exacta? Consúltenos, fabricamos a medida.
